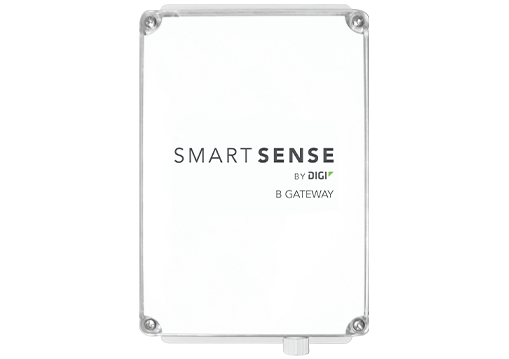

SmartSense B Gateway

The SmartSense B Gateway is the central communications and GPS hub of the SmartSense automated temperature monitoring solution for transportation and logistics. Temperature and location are recorded wirelessly via SmartSense Wireless Sensors and SmartSense Data Loggers. Data is then sent to the SmartSense dashboard over wireless cellular communication.

Spec Page Lockup-B Gateway

Plug and play cellular gateway with Bluetooth® Low Energy networking capabilities to provide internet connectivity to SmartSense B2/B Sensors

Integrated GPS functionality for asset tracking and geofence applications

NEMA 4 weatherproof enclosure

Technical Specifications

SmartSense B Gateway Technical Specifications

Communication Method

BLE, WLAN: 802.11 a/b/g/n, Cellular: LTE/3G

Power Source

Inputs from 9 to 36V DC

Common Power Sources

12VDC (1.5A) wall adapter, 12V reefer unit battery

Cable Options

12V DC adapter; Reefer trailer cable

Physical Dimensions

6.73” x 4.76” x 2.17”

IP Rating

IP65

Wi-Fi Security Protocol

WPA, WPA2, WEP

Related Products

Discover how SmartSense hardware integrates to complete your Sensing as a Service solution.

B2 Sensor thumbnail

SmartSense B2 Sensor

A compact and feature-rich environmental sensor and data collector designed for applications that require a minimal footprint.

Learn More

B Sensor thumbnail

SmartSense B Sensor

Easy to use and part of the complete SmartSense automated temperature monitoring solution.

Learn More

SmartSense Data Logger

SmartSense Data Logger

Provides critical visibility to temperature at the point-of-product while in transit.

Learn More

Learn more about SmartSense B Gateway by downloading our datasheet

DOWNLOAD DATASHEET DOWNLOAD SYSTEM OVERVIEW
