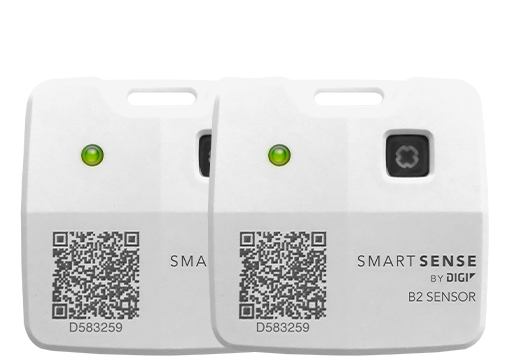

SmartSense B2 Sensor for Temperature Danger Zone Monitoring

The SmartSense B2 Sensor is a remote temperature sensor designed to alert you of temperature danger zones in commercial refrigerators and freezers. B2 Sensors collect temperature and humidity data every 10 minutes and report this data to the SmartSense cloud dashboard via a SmartSense BZ Gateway.

bluetooth temperature sensors

Compact commercial Bluetooth® 5.0 temperature and humidity sensor

NSF rated enclosure that is safe for food contact

Store-and-forward capable and over-the-air upgradable

Technical Specifications

SmartSense B2 Sensor Technical Specifications

Product SKU

TM-BSENSOR

Dimensions

2” x 2” x 0.71” (51mm x 51mm x 18mm)

Communication Range

300 feet*

Communication Interval Default

10 minutes

Communication Method

Bluetooth® 5.0

Temperature Operating Range

-20°C to 60°C (-4°F to 140°F)

Relative Humidity Operating Range

0% to 95% (non-condensing)

Altitude Operating Range

0-2,000m

Pollution Degree

2, Normally only nonconductive pollution occurs. Temporary conductivity caused by condensation is to be expected.

Temperature Measurement Accuracy

±0.5°C (1°F) max

Battery Life

Up to 4 years**

Enclosure

NSF food contact and water resistant***

Warranty

1 Year

* Actual communication range will depend on RF environment

** Actual battery life will depend on communication interval and environmental conditions including operating temperature

*** Manufacturing test data indicates that this device will maintain normal functionality after being submerged under one meter of water for 30 minutes. These statements have not been independently verified by a laboratory.

Bluetooth Temperature Sensor System

Discover how SmartSense temperature monitoring software and hardware integrate to complete your IoT Sensing-as-a-Service solution for commercial coolers, walk-ins, refrigerators, and freezers.

commercial refrigeration temperature monitoring

SmartSense BZ Gateway

Provides remote monitoring and sensor network management via a Verizon LTE cellular connection.

Learn More

commercial temperature monitoring system

SmartSense Z Sensor

Fully automates temperature monitoring of fridges, freezers, and equipment.

Learn More

remote temperature sensor without wifi

SmartSense B Sensor

Easy to use and part of the complete SmartSense automated temperature monitoring solution.

Learn More

Learn more about SmartSense B2 Sensors by downloading our datasheet

DOWNLOAD DATASHEET
