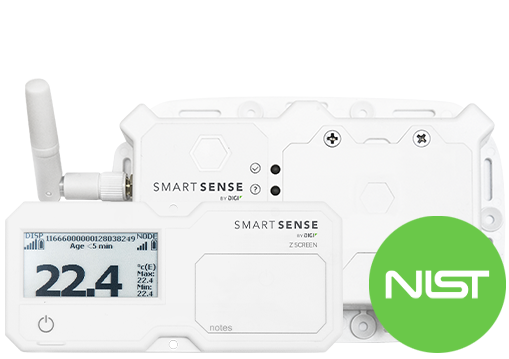

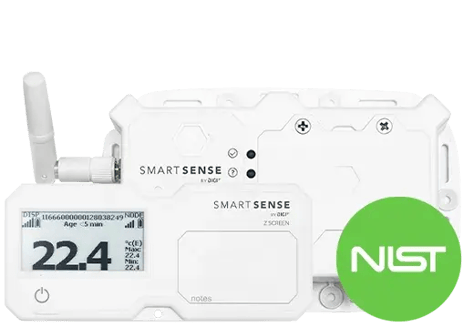

SmartSense Z Sensor
Efficiently monitor temperature with IoT sensors in real-time. Our dashboard centralizes corrective action management and reporting for regulatory compliance and quality control. Sensors deploy in minutes and fully automate temperature monitoring of fridges, freezers, and equipment.
Zigbee® wire-free IoT sensor with removable wireless display
Sensors automatically connect to gateways for a self-provisioning installation process
Includes internal temperature sensor & two ports for NIST calibrated probes
Technical Specifications
SmartSense Z Sensor Technical Specifications
Product SKU
TM-ZP300-DS (Standard Range)
Wireless
2.4 GHz
Dimensions
1.1" x 3.3" x 6.62" (28mm x 83.8mm x 168mm)
Sensor Accuracy
±0.5ºC (±0.9ºF) 0.1º Resolution
Built-in Sensor Range
-20ºC to 60ºC (-4ºF to 140ºF)
External Extended Range Probe
-200ºC to 200ºC (-328ºF to 392ºF)
Expansion Ports
2 ports for external sensors, e.g. NIST temperature, humidity, glycol buffer
Environmental
IP67
Communication Range
Up to 1,000 feet*
Communication Interval
15 minutes
Display
Wireless high-contrast display with audible/visual alarm
Sensors per Gateway
Up to 32 wireless sensors connect each SmartSense BZ Gateway
Battery Life
Up to 5 years** (2 replaceable AA batteries)
Security
128 bit AES encryption | Certificate based authentication
Warranty
1 Year
* Actual communication range will depend on RF environment
** Actual battery life will depend on communication interval and environmental conditions including operating temperature
Related IoT Monitoring Products
Discover how SmartSense IoT hardware integrates to complete your Sensing as a Service solution.
NIST Temperature Probe
2 year NIST calibration with a temperature range of -40ºC to 60ºC (-40ºF to 140ºF).
6' Extended Range Probe
2 year NIST calibration with a temperature range of -200ºC to 200ºC (-328ºF to 392ºF).
Glycol Simulator Probe
2 year NIST calibration with a temperature range of -40ºC to 80ºC (-40ºF to 176ºF).
Learn more about SmartSense Z Sensors by downloading our datasheet
SmartSense is a complete temperature compliance monitoring and enterprise visibility solution
SmartSense connects your IoT operations to give visibility into the compliance and execution performance at all your locations. Our end-to-end solution is designed and built to ensure IoT implementation, performance, and support without compromise.
Wireless Sensors and Dataloggers
Calibrated sensors and data loggers are added to your critical assets and environments to record condition data. This data is used to trigger alarms when there is a problem and provide insight into the performance of your equipment.
Digital Checklists and Tasks
Digitize HACCP compliance, daily sanitation logs, hospital crash cart audits, and more to take the guesswork out of SOP management.
Cellular Gateways
Transfer data and provide a secure, self-contained, drop-in network connection with no IT support required. If power fails, our battery-backed gateways store sensor readings until connectivity is restored.
Cloud Dashboard
Gain real-time oversight of your operations and business initiatives and actionable insights into compliance, site performance, and risks.
