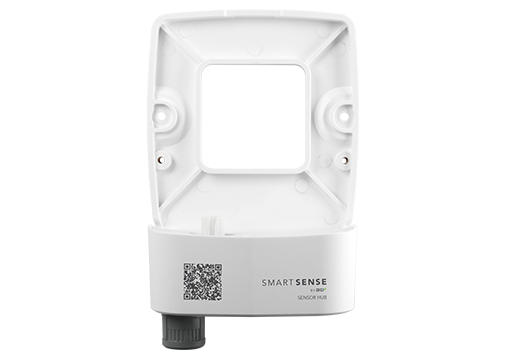

SmartSense Sensor Hub

The SmartSense Sensor Hub is an accessory that connects with the SmartSense BZ Gateway to enable the use of external sensors (i.e. O2, CO2, differential pressure, etc.) and PoE (Power Over Ethernet). Sensor Hub easily connects with existing BZ Gateways.

Spec Page Lockup-Sensor Hub

Enables support for external sensors such as O2, CO2, differential pressure, and more

Easy setup via the SmartSense Install app

Easily connects to the BZ Gateway

Technical Specifications

SmartSense Sensor Hub Technical Specifications

Product SKU

TM-SENSORHUB

Dimensions

5.7” x 3.6” x 1.7” (145.3mm x 90.8mm x 43.7mm)

Weight

4.3oz (122.2g)

Network Requirements

10/100 Ethernet option

Device Operating Range

5°C to 35°C (40°F to 95°F)

Power Source

100VAC-240VAC, 50Hz/60Hz or PoE IEEE 802.3af

Sensor Type

4-20mA, 24VDC

24VDC Source

100mA max

Maximum Sensors

4 sensors

Storage Temperature

Short-term and long-term: -20ºC to 45ºC (-4ºF to 113ºF)

LED Activity

LED status indicator on device

Learn more about SmartSense BZ Gateway by downloading our datasheet

SmartSense is a complete compliance monitoring and enterprise visibility solution

SmartSense connects your operations to give visibility into the compliance and execution performance at all of your locations. Our end-to-end solution is designed and built by SmartSense to ensure implementation, performance, and support without compromise.

1 SmartSense Z Sensor and B2 Sensor

Wireless Sensors and Dataloggers

Calibrated sensors and data loggers are added to your critical assets and environments to record condition data. This data is used to trigger alarms when there is a problem and provide insight into the performance of your equipment.

2 SmartSense NEXT App and Bluetooth Probe

Digital Checklists and Tasks

Digitize HACCP compliance, daily sanitation logs, hospital crash cart audits, and more to take the guesswork out of SOP management.

3 SmartSense BZ Gateway

Cellular Gateways

Transfer data and provide a secure, self-contained, drop-in network connection with no IT support required. If power fails, our battery-backed gateways store sensor readings until connectivity is restored.

4 SmartSense Dashboard and NEXT App

Cloud Dashboard

Gain real-time oversight of your operations and business initiatives and actionable insights into compliance, site performance, and risks.
